External Venetian Blinds
High performance, technically advanced venetian blind systems.
Horiso Australian made External Venetian Blinds can be specified for external or internal use with the benefit of reducing solar heat gain, maximising the use of daylight, controlling airflow and providing privacy, making them an energy-efficient, environmentally-friendly shading option.
External Venetian Blinds use aluminium / timber slats which can deploy for full window coverage, tilt from 0° to 130° for varying light filtration, and fully retract by way of manual, motorised or automation control.
The tilting slats provide the optimal amount of daylight, minimising the need for artificial lighting.
Slats also preserve views and minimise air-conditioner usage by maintaining effective airflow and reducing overall solar heat gain. By controlling solar glare, our systems are also able to reduce eye irritation and improve computer screen visibility, contributing to higher comfort and productivity levels.
• Reduce thermal heat gain by up to 93%
• Optimise shading at varying sun angles
• Contribute to achieving a high environmental green building rating
• Prevent potential UV damage
• Provide years of reliable operation with minimal maintenance
• Offer various control options (manual, motorised and automated control)
Ask us a questionExternal Venetian Blinds use aluminium / timber slats which can deploy for full window coverage, tilt from 0° to 130° for varying light filtration, and fully retract by way of manual, motorised or automation control.
The tilting slats provide the optimal amount of daylight, minimising the need for artificial lighting.
Slats also preserve views and minimise air-conditioner usage by maintaining effective airflow and reducing overall solar heat gain. By controlling solar glare, our systems are also able to reduce eye irritation and improve computer screen visibility, contributing to higher comfort and productivity levels.
• Reduce thermal heat gain by up to 93%
• Optimise shading at varying sun angles
• Contribute to achieving a high environmental green building rating
• Prevent potential UV damage
• Provide years of reliable operation with minimal maintenance
• Offer various control options (manual, motorised and automated control)
Key Features
Easy to Operate
System operation by manual, motorised remote control or fully integrated automation.
Ease of Installation
Customisation of system widths and lengths offer retrofit installation to internal, external and double skin facades.
Aluminium’s Innate Properties
High radiation reflection, low radiation absorption and low transmission values. Reduction in the energy requirements of mechanical heating/cooling systems.
High Wind Resistance
Head box, slats, cable guides and extruded aluminium base rails are engineered to withstand extreme wind loads.
Maximise Use of Daylight
More efficient cross ventilation can be achieved by slats automatically tilting to optimise shading at varying sun angles.
High Quality and Durable Components
high-strength, shrink-resistant and reinforced 100% Kevlar ladder braid.
Aluminium Slats
Crowned aluminium slats are made from a highly elastic alloy, making them flexible, scratch-proof and shock-proof. Double omega punching, (standard on external and double skin facade installations) combined with the ladder braids ensure smooth closing of slats, also retaining slat alignment and stability in most weather conditions and minimise excessive movement.
Horiso's powder coating finishing processes and products are approved by Qualicoat, an internationally recognised powder coating licensing authority.
Horiso's powder coating finishing processes and products are approved by Qualicoat, an internationally recognised powder coating licensing authority.
Standard Colours
Jet Black - HOR 9005
Grey - HOR 7021
Storm Pearl - HOR 7043
Silver Pearl - HOR 9007
Dark Brown - HOR 8019
Bronze - HOR 7140
Silver - HOR 9006
White - HOR 9016
Monument - HOR 9020
Standard Widths
80 mm / 100 mm / 150 mm
Perforated Slats
Perforated slats are offered in our standard aluminium colour range. Custom colours can be requested using the RAL colour system (subject to minimum quantity requirements).
Perforated aluminium slats feature tiny circular holes allowing a small amount of light through the blind when it is closed or tilted. A large amount of natural light is excluded with a small percentage of light allowing to pass through. Solar heat gain and glare is significantly reduced including harmful UV rays. The small percentage of light that is allowed to pass through allows a partial view through the window to be maintained.
Perforated aluminium slats feature tiny circular holes allowing a small amount of light through the blind when it is closed or tilted. A large amount of natural light is excluded with a small percentage of light allowing to pass through. Solar heat gain and glare is significantly reduced including harmful UV rays. The small percentage of light that is allowed to pass through allows a partial view through the window to be maintained.
Timber Slats
Horiso selects timber for the manufacturing of timber slats from sustainably managed forests in both western red cedar, paulownia and Accoya® varieties.
Western Red Cedar
A dimensionally stable timber under most weather conditions and is not prone to shrinkage or swelling. Due to its versatility, it can be used for both internal and external applications.
A dimensionally stable timber under most weather conditions and is not prone to shrinkage or swelling. Due to its versatility, it can be used for both internal and external applications.
Light Stain
Medium Stain
Dark Stain
Timber Widths: 80mm X 4mm
Paulownia
A reliable and resilient light weight and straight grain hardwood timber for internal installation.
A reliable and resilient light weight and straight grain hardwood timber for internal installation.
PT200 - Natural
NC300 - Natural
PT205 - Golden Oak
PT224 - Mahogany
PT150 - Limed White
PT230 - Antique Grey
PT215 - Dark Java
PT235 - Black Walnut
Timber Widths: 84mm x 5mm
Accoya®
Accoya® is modified timber in which a process called acetylation, a cutting-edge patented technology, enables it to resist rot, defy the elements and stay strong for decades. Accoya® wood is sourced from sustainable sources, including FSC® and Cradle to Cradle™ Gold environmental certification. It can be used for both internal and external applications.
Please make contact for more information on Accoya® slat sizes, colour stains and lacquered finish options.
Accoya® is modified timber in which a process called acetylation, a cutting-edge patented technology, enables it to resist rot, defy the elements and stay strong for decades. Accoya® wood is sourced from sustainable sources, including FSC® and Cradle to Cradle™ Gold environmental certification. It can be used for both internal and external applications.
Please make contact for more information on Accoya® slat sizes, colour stains and lacquered finish options.

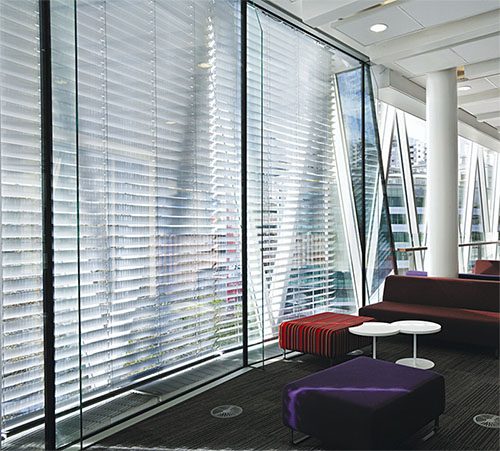

Specialty Venetian Blinds in double skin facades
Horiso External Venetian Blinds are suitable for installation in double-skin facades. External venetian blinds installed between the two skins / facades maximise the management of the solar energy passing through the facade. Operational control of the external venetian blinds optimise the benefits for both the building and the occupants.
